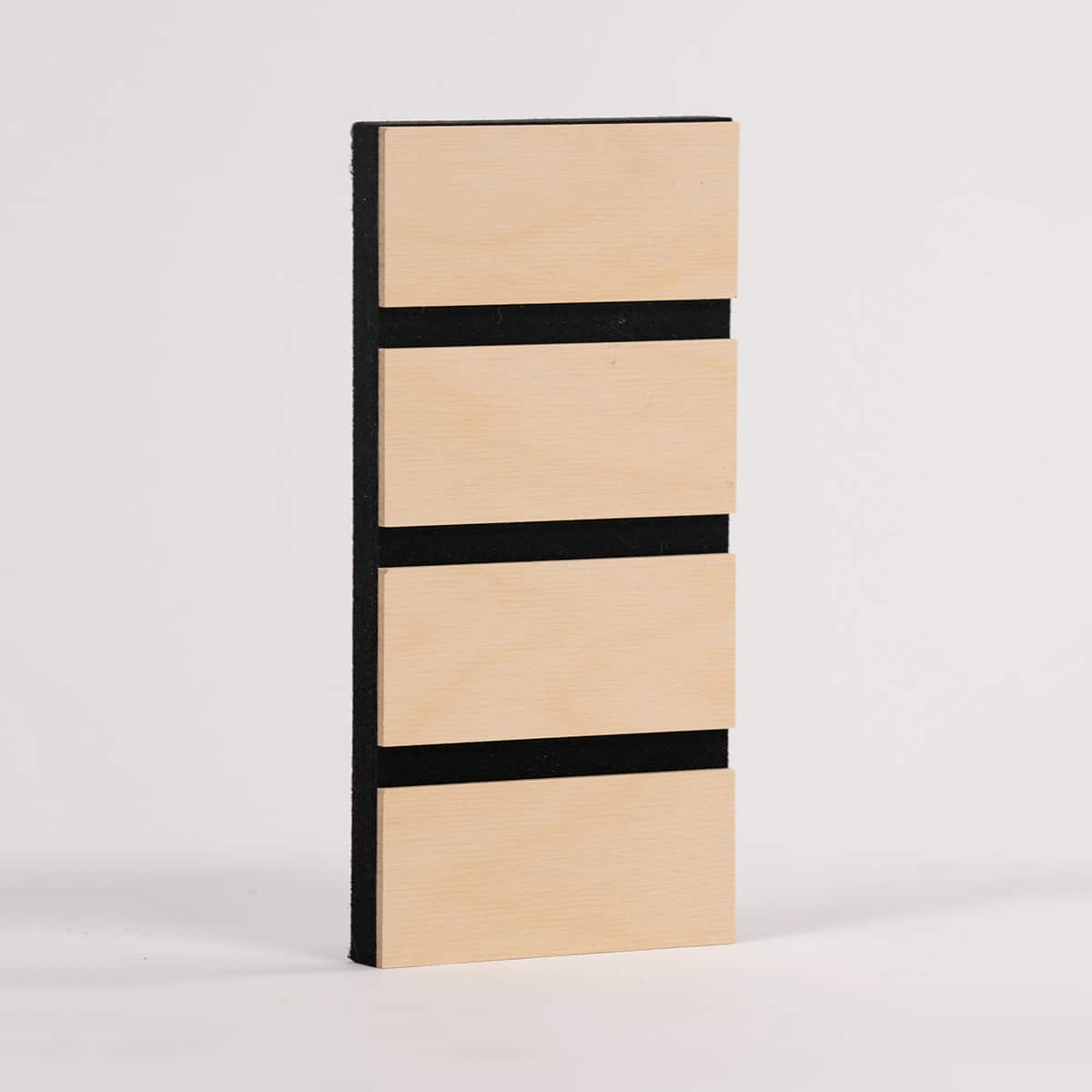

Timbertop Slat Acoustic Wall Panel

FilaSorb™ acoustic panels and NAVURBAN™ premium timber alternative have been crafted together to create Timbertop; an acoustic panel that achieves the appearance of real wood slats, yet is lightweight, sustainably sourced, and achieves an NRC of up to 0.85.



Choose from any FilaSorb™ base panel color with any NAVURBAN™ woodgrain in either the vertical or horizontal slat orientation, available in four thicknesses of varying acoustic levels. Custom sizing, spacing and edging is also available. Develop highly unique and beautiful soundscaping solutions with endless choice at your fingertips. Timbertop panels represent the perfect partnership between acoustic absorption and premium modern designer surfaces by NAV.

Colorways

Woodgrain Finishes

Albany Oak

Auchen Flower

Birchgrove

Blackheath

Bugendore

Byron Blackbutt

Clifton Hill

Coolum Spotted Gum

Daylesford

Eureka Ebony

Fremantle

Hollywood

Hoop Pine

Jarrahdale

Kew Walnut

Ravenswood

Scarborough

Tablelands

Windslow Ash

Yarra Walnut

FilaSorb

Peppercorn

PE22

Lipstick Red

LI14

Carrot

CA08

Peach

PE19

Butter

BU07

Popcorn

PO26

Pistachio

PI25

Thistle

TH28

Oregano

OR18

Kale

KA12

Wasabi

WA29

Denim

DE09

Peacock

PE20

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Lilac

LI13

Iris

IR10

Berry

BE06

Midnight

MI16

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Grey

GR02

Platinum

PL04

Metal

ME03

White

WH12

Ivory

IV11

Pearl

PE21

Product Details

NRC

0.85, 20mm air gap

Noise Reduction Coefficient (NRC) rating dependent on sound frequencies and mounting method as follows;

12mm core:
0.45, no air gap
0.54, 12mm air gap
0.64, 20mm air gap
0.85, 200mm air gap

30mm core:
0.80, no air gap
0.85, 20mm air gap

Specification

ApplicationWall and ceiling
CompositionPolyester + MDF + Non PVC finish
MaterialFilaSorb™ & NAVURBAN™
Recycled Content60%-80% min.
NRC Rating0.45 - 0.85
Thickness16mm, 25mm, 34mm, 43mm +/- 10%
Dimensions1220 x 2800mm / 1200 x 2800mm – Custom size available upon request
Fire RatingFilaSorb™ - AS/ISO 9705.1, Group 1
NAVURBAN™ - EO MDF - AS ISO 9705 - Group 3 NAVURBAN™ - FR MDF - AS ISO 9705, Group 2

Sustainability

One square meter diverts 108 x PET (600ml) drinking bottles from landfill.

Custom

Acoufelt design engineers stand ready to serve on your design team, marrying their deep understanding of the art and science of sound management to your vision with custom cutting, coloring, printing, bevelling, shaping and technical advice to soundscape your designs.

How to specify

Icon Surface
1. Choose your surfaces.

Soundscape by placing enough sound absorption where it has the greatest impact, factoring in high traffic and noisy areas. Hint: adjoining surfaces with sound absorbing materials reduce reverberation faster.

Icon Color
2. Select a color, pattern or cut.

Choose from our broad palette and design gallery, or use our custom capabilities to design your own.

Icon Measure
3. Measure your installation space.

Take the dimensions and get in touch so we can help you soundscape your space efficiently.
