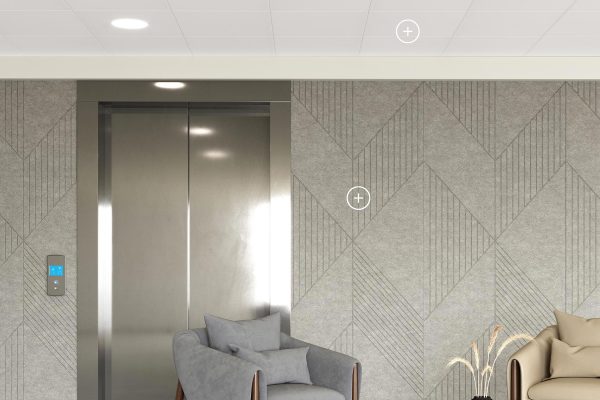

Fracture Panel Wavelength - Wasabi

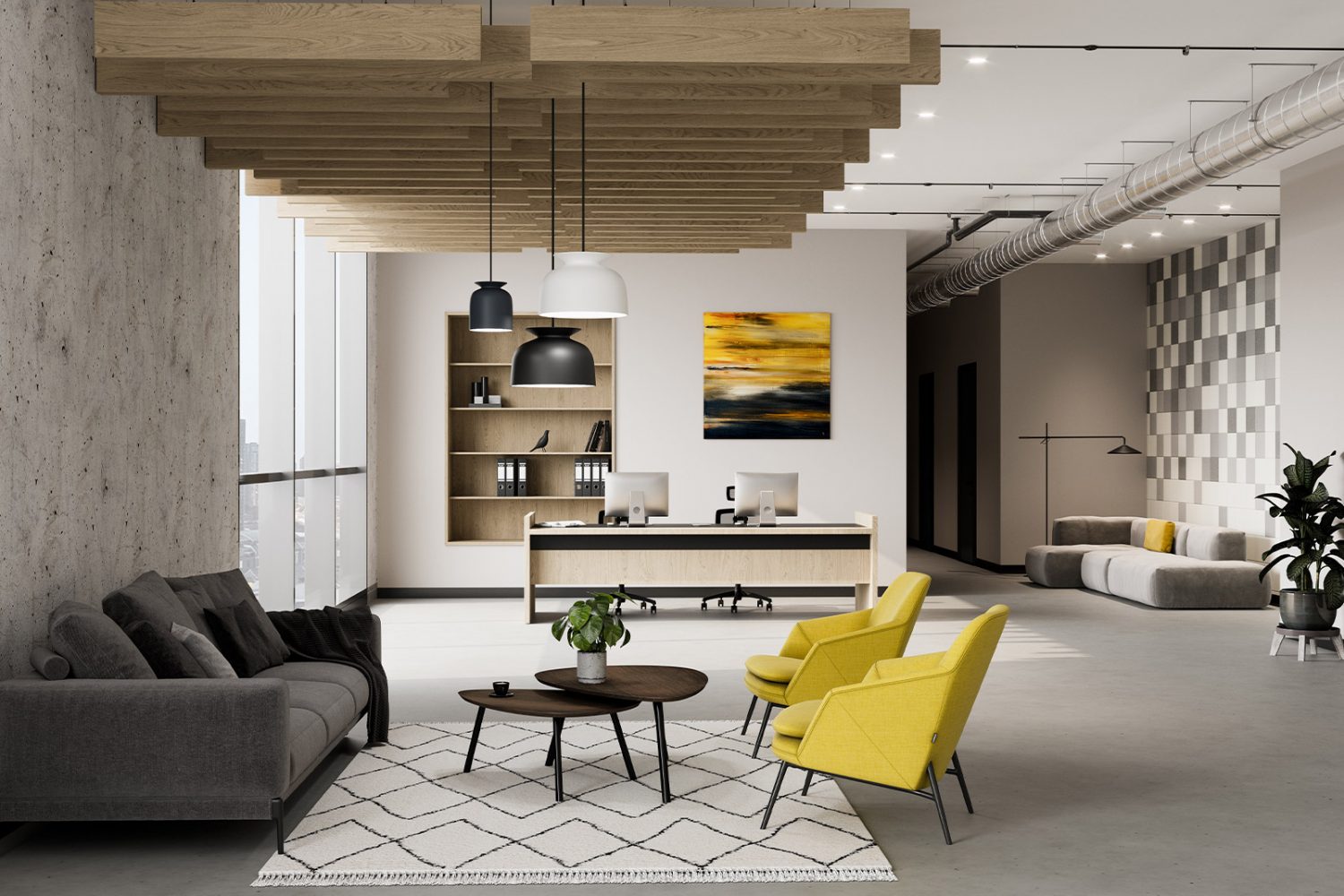

QuietSpan Ceiling Baffles

The QuietSpan™ series of ceiling baffles encompasses a broad range of leading architectural ceiling designs and systems, manufactured for acoustic performance.

Available in multiple sizes and thicknesses, all ceiling slats, struts, strips, boards, beams and all other components can be ordered preassembled, and paired with our installation accessories for easy, accessible installation.

Wing
Ripple

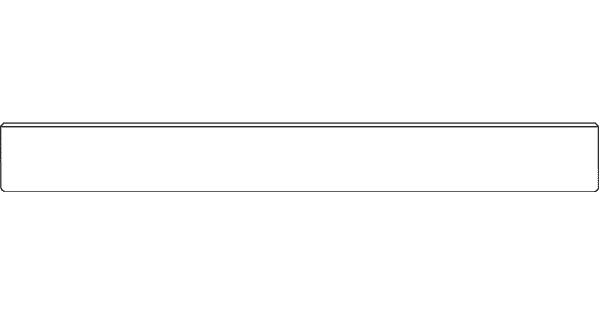

Linear

Colorways

FilaSorb 12 & 24

Peppercorn

PE22

Currant

CU59

Carrot

CA08

Peach

PE19

Flamingo

FL61

Valentine (NEW)

VA70

Turmeric

TU60

Popcorn

PO26

Wheat (NEW)

WH68

Kale

KA12

Oregano

OR18

Thistle

TH28

Sencha

SE58

Celery

CE65

Eucalyptus (NEW)

EU71

Wasabi

WA29

Pistachio

PI25

Midnight

MI16

Flint

FL64

Granite

GR62

Denim

DE09

Iris

IR10

Peacock

PE20

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Sea Salt

SE57

Shiraz

SH63

Berry

BE06

Lilac

LI13

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Grey

GR02

Metal

ME03

Platinum

PL04

Walnut

WA56

Umber

UM54

Amethyst (NEW)

AM69

Quartz

QU67

Almond

AL55

Ivory

IV11

Pearl

PE21

White

WH12

FilaSorb 22

Light Grey

GR22

Piano Black

BL22

White

WH22

WoodBeQuiet™ Prints

Charred Larch

WQ09

French Bobbin

WQ08

Loft

WQ06

White Elm

WQ07

Board Walk

WQ10

Antique Chest

WQ11

Barn Door

WQ05

Boat Shed

WQ02

Log Cabin

WQ04

Wine Barrel

WQ03

Picket Fence

WQ01

Product Details

NRC

0.75 ("J" Mounting method)

Noise Reduction Coefficient (NRC) rating dependent on sound frequencies and mounting method as follows;

FilaSorb™ 12
NRC 1.30 (J-600 Mounting Method)

FilaSorb™ 22

NRC 0.65 (no air gap)*
NRC 0.70 (20mm air gap)*

NRC 0.70 (50mm air gap)*

FilaSorb™ 24

0.60 NRC (no air gap)*

*results are material based.

Specification

ApplicationCeiling
Composition100% polyester
MaterialFilaSorb™ polyester felt
Recycled Content60% min. rPET
NRC Rating0.60 - 0.75
Thickness12mm, 22mm, 24mm +/- 10%
DimensionFilaSorb™ 12 & 22:
Linear – 200 x 2800mm
Ripple – 600 x 2800mm
Wing – 200 x 120 x 2800mm
FilaSorb™ 24:
Linear – 200 x 2780mm
Ripple – 600 x 2780mm
Wing – 200 x 120 x 2780mm
Custom sizes available upon request
Quantity per cartonLinear = 6
Ripple = 2
Wing = 6
Fire Test MethodAS ISO 9705:2033 (according to AS 5637.7:2015 requirements)
Group NumberGroup 1

Sustainability

Custom

Acoufelt design engineers stand ready to serve on your design team, marrying their deep understanding of the art and science of sound management to your vision with custom cutting, coloring, printing, bevelling, shaping and technical advice to soundscape your designs.

Quick Ship

QuickShip Standard

Our expert manufacturing team converts acoustic material into creative, design-led solutions using the latest cutting, bevelling and printing software and machinery. Our standard made to order products have an approx. 2-3-week lead time from payment and order confirmation.

Need it faster? Contact us for our express service rates.

Custom options available for all standard made to order collections (MOQ’s apply). Talk to us.

How to specify

Icon Surface
1. Choose your surfaces.

Soundscape your space by placing your sound absorptive products where they have the greatest impact, factoring in high traffic and noisy areas. Hint: install sound absorbing products on adjacent surfaces for better reverberation results.

Icon Color
2. Select a color, pattern or cut.

Choose from our broad palette and design gallery, or use our custom capabilities to design your own.

Icon Measure
3. Measure your installation space.

Take the dimensions and get in touch so we can help you soundscape your space efficiently.
