Pixel panel – Midnight + Butter
Ceiling Baffles - Wasabi

Pixel Acoustic Wall Panels

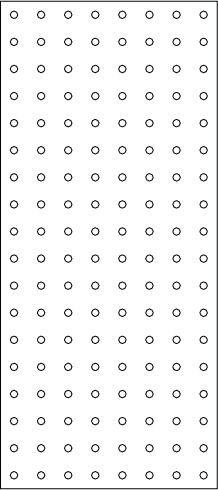

Pixel is a double-layer acoustic wall panel with a color-contrasting precision dot pattern.

Circles are cut into the outer layer to reveal the second panel color beneath. Adding depth, texture, pattern, color, and sound absorption, these soundscaping elements work together to make quiet beautiful. Choose any two colors from the FilaSorb™ palette to create your unique Pixel pattern.

Select your FilaSorb™ acoustic tile depending on the acoustic absorption rating, colorway and pricepoint you require.

Choose your tile

Panel
Thickness
Colors
NRC
Price
FilaSorb 12
12mm
29
0.45-0.85
***
FilaSorb 22
22mm
3
0.70
**
FilaSorb V30
30mm
30
0.80-0.85
**

FilaSorb 12 comes in all full colors, and has a continuous solid color rigid core for versatility in design and cutting applications.

FilaSorb 22 is made from a low GSM, soft PET core with rigid top and bottom skins, making it perfect for ceiling installations due to its lightweight construction.

FilaSorb V30 is a high performance architectural engineered acoustic tile. The V in V30 refers the technology used to construct the tight, vertical structure of fibers, resulting in a world-leading lightweight material of structural integrity, guaranteed to retain a rigid form in ceiling applications. Made in Australia using over 80% recycled material, V30 tiles achieve an NRC up to 0.85, and are offered in a wide range of colour and design options. ​

Choose your colorway

FilaSorb 12

Peppercorn

PE22

Lipstick Red

LI14

Carrot

CA08

Peach

PE19

Butter

BU07

Popcorn

PO26

Pistachio

PI25

Thistle

TH28

Oregano

OR18

Kale

KA12

Wasabi

WA29

Denim

DE09

Peacock

PE20

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Lilac

LI13

Iris

IR10

Berry

BE06

Midnight

MI16

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Grey

GR02

Platinum

PL04

Metal

ME03

White

WH12

Ivory

IV11

Pearl

PE21

FilaSorb 22

Light Grey

GR22

Piano Black

BL22

White

WH22

FilaSorb V30 (Laminated to Non-Rigid Core)

Peppercorn

PE22

Lipstick Red

LI14

Carrot

CA08

Peach

PE19

Butter

BU07

Popcorn

PO26

Pistachio

PI25

Thistle

TH28

Oregano

OR18

Kale

KA12

Wasabi

WA29

Denim

DE09

Peacock

PE20

Azur

AZ05

Marine

MA15

Periwinkle

PE23

Lilac

LI13

Iris

IR10

Berry

BE06

Midnight

MI16

Piano Black

PI24

Charcoal

CH01

Slate

SL27

Grey

GR02

Platinum

PL04

Metal

ME03

White

WH12

Ivory

IV11

Pearl

PE21

Natural

NA17

Colorways

Carrot and Midnight

PI0816

Carrot and Charcoal

PI0801

Butter and Carrot

PI0708

Butter and Slate

PI0727

Wasabi and Marine

PI2915

Marine and Wasabi

PI1529

Midnight and Marine

PI1615

Midnight and Butter

PI1607

Charcoal and Butter

PI0107

Slate and Pearl

PI2721

Grey and Wasabi

PI0229

Metal and Slate

PI0327

Metal and Marine

PI0315

Pearl and Carrot

PI2108

Pearl and Wasabi

PI2129

Product Details

NRC

0.60, no air gap

Noise Reduction Coefficient (NRC) rating dependent on sound frequencies and mounting method.

Specification

ApplicationWall and ceiling
Composition100% polyester
MaterialFilaSorb™ & Fabric
Recycled Content60% min.
NRC Rating0.60
Thickness24mm +/- 10%
Dimensions1200 x 2780mm
Fire RatingAS/ISO 9705.1, Group 1, ASTM E84-17a, Class A, EN 13501-1:2018

Sustainability

Every square meter of FilaSorb™ diverts on average approximately 108 x 600ml PET drinking bottles from landfill.

Custom

Acoufelt design engineers stand ready to serve on your design team, marrying their deep understanding of the art and science of sound management to your vision with custom cutting, coloring, printing, bevelling, shaping and technical advice to soundscape your designs.

Quick Ship

Our Quick Ship offering signifies our commitment to stocking products with minimal lead times. If a product is displayed with a Quick Ship symbol, this means the product is constantly being produced to replenish stock levels. If a product is not indicated with the Quick Ship banner, minimum order quantities and lead times apply.

How to specify

Icon Surface
1. Choose your surfaces.

Soundscape by placing enough sound absorption where it has the greatest impact, factoring in high traffic and noisy areas. Hint: adjoining surfaces with sound absorbing materials reduce reverberation faster.

Icon Color
2. Select a color, pattern or cut.

Choose from our broad palette and design gallery, or use our custom capabilities to design your own.

Icon Measure
3. Measure your installation space.

Take the dimensions and get in touch so we can help you soundscape your space efficiently.
